Fire extinguishers

Vatrosprem produces all types of manual and portable fire extinguishers. So far, more than 3.5 million fire extinguishers of various types have been produced in accordance with domestic and international standards.

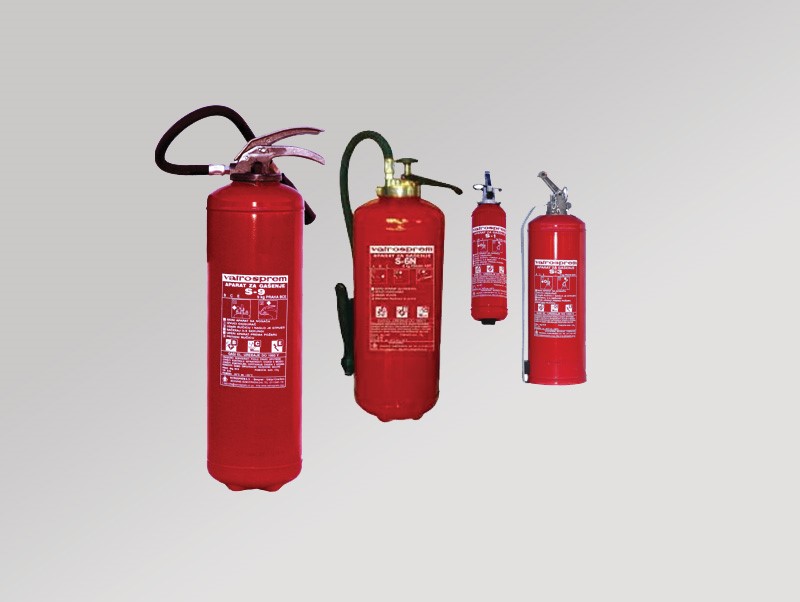

Fire extinguishers for extinguishing powder

Manual powder extinguishers are manufactured in accordance with the SRPS Z.C2.035 standard in two versions: with a bottle and under constant pressure. These devices with 1, 2, 3, 6, and 9 kg of powder are used to extinguish fires on passenger cars (S-1, S-1A), vans (S-2, S-2A) and trucks up to 2t (S-3, S-3A).

S-6, S-6A, S-9 and S-9A devices are used to extinguish fires on trucks, buses, tankers, locomotives, gas stations, in industrial buildings, warehouses and other work rooms, as well as in residential buildings.

SRPS Z.C2.035 apparatus with vial

Technical characteristics of the chassis:

Extinguishing agent Powder based on sodium bicarbonate
Fire class *, **, B, C
Device label S-1 S-2 S-3 S-6 S-9 S-6N S-9N
Time of action (s) 7 12 15 15 20 18 23
Spray range (m) 4,5 5 5 6 6 7 7
Powder weight (kg) 1 2 3 6 9 6 9
Weight of full appliance (kg) 2,5 4,2 5,25 11 14,5 11,2 15,8
Area of ​​use -20°C to +60°C
Working pressure 12 bars
Application Extinguishes electrical devices up to 1000 V
* If they are filled with universal powder, they can also successfully extinguish Class A fires.
** Dry chemical powder is expelled using CO2 gas and is not harmful to the human body.

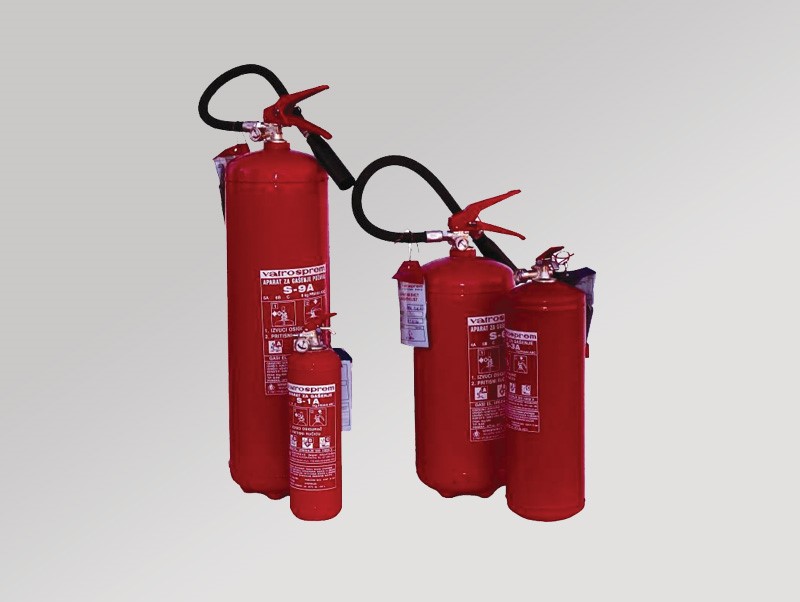

SRPS Z.C2.035 devices under constant pressure

SRPS Z.C2.035 devices under constant pressure
SRPS Z.C2.035 devices under constant pressure

Technical specifications:

Extinguishing agent All-purpose powder
Fire class ***, A, B, C
Device label S-1A S-2A S-3A S-6A S-9A
Time of action (s) 7 12 15 25 30
Spray range (m) 4 4,5 5 7 8
Powder weight (kg) 1 2 3 6 9
Weight of full appliance (kg) 2,4 3,85 5,2 9,8 13,0
Area of ​​use -20°C to +60°C
Working pressure 12 bars
Application Extinguishes electrical devices up to 1000 V
*** The propellant by which the powder is ejected is compressed nitrogen gas.

SRPS Z.C2.135 devices with a bottle

SRPS Z.C2.135 devices with a bottle
SRPS Z.C2.135 devices with a bottle

Technical specifications:

Extinguishing agent Powder based on sodium bicarbonate
Fire class *, **, B, C
Device label S-50 S-100
Time of action (s) 45 60
Spray range (m) 10 10
Powder weight (kg) 50 100
Weight of full appliance (kg) 101 188
Area of ​​use -20°C to +60°C
Working pressure 12 bars
Application Extinguishes electrical devices up to 1000 V
* If they are filled with universal powder, they can also successfully extinguish class A fires.
** Dry chemical powder is expelled using CO2 gas and is not harmful to the human body.

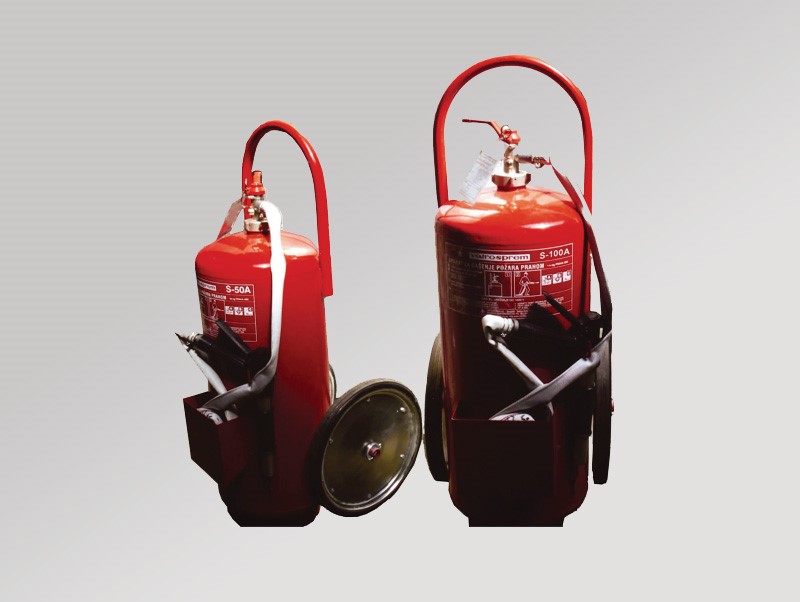

SRPS Z.C2.135 devices under constant pressure

SRPS Z.C2.135 devices under constant pressure
SRPS Z.C2.135 devices under constant pressure

Technical specifications:

Extinguishing agent Powder based on sodium bicarbonate
Fire class A, B, C
Device label S-50A S-100A
Time of action (s) 45 60
Spray range (m) 10 10
Powder weight (kg) 50 100
Weight of full appliance (kg) 88 175
Area of ​​use -20°C to +60°C
Working pressure 12 bars
Application Extinguishes electrical devices up to 1000 V

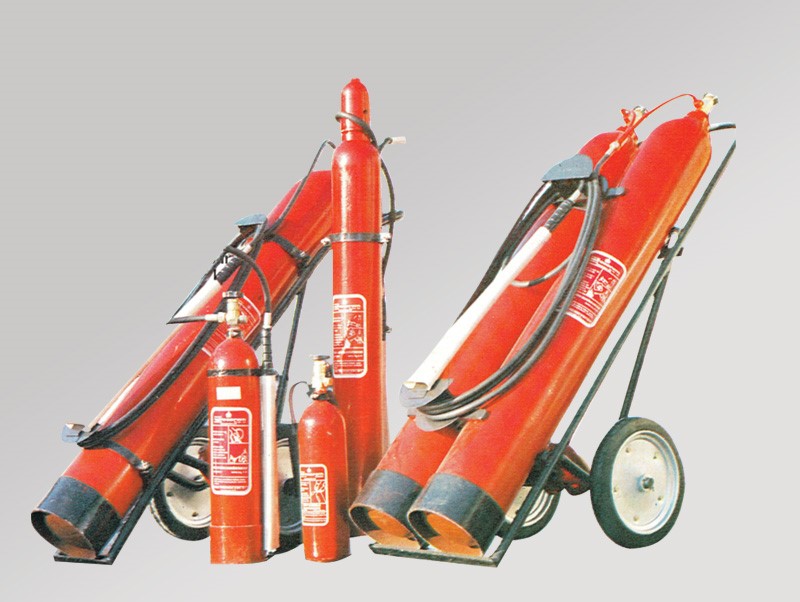

Fire extinguishers for extinguishing with carbon dioxide

Carbon dioxide extinguishers are manufactured according to SRPS Z.C2.040 (hand-held extinguishers) and SRPS Z.C2.140 (transportable extinguishers) standards.

They are used for extinguishing fires on electrical devices and installations, vehicles, petrol stations, chemical industry and fuel and liquefied gas storages.

SRPS Z.C2.135 devices under constant pressure
SRPS Z.C2.135 devices under constant pressure

Technical specifications:

Extinguishing agent Carbon dioxide CO2 *
Fire class B, C
Device label CO2-5 CO2-10 CO2-30 CO2-60
Time of action (s) 12 25 70 2x70
Spray range (m) 3–4 6 6 6
Amount of extinguishing agent (kg) 5 10 30 2x30
Weight of full appliance (kg) 19.3 40 107 192
Safety valve (bar) 170±5 170±5 170±5 170±5
Area of ​​use -20°C to +43°C (+60°C)
Working pressure 56 bars
Application Extinguishes electrical devices up to 1000 V
* Degree of filling is 1.34 or 1.55 for tropical conditions.
