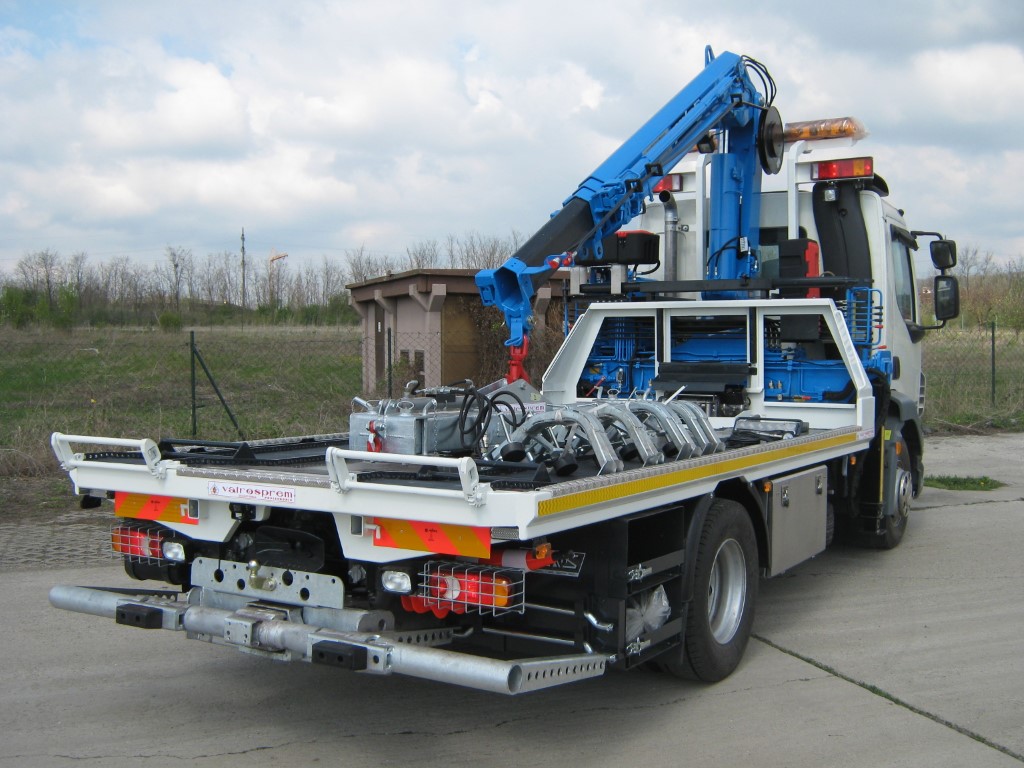

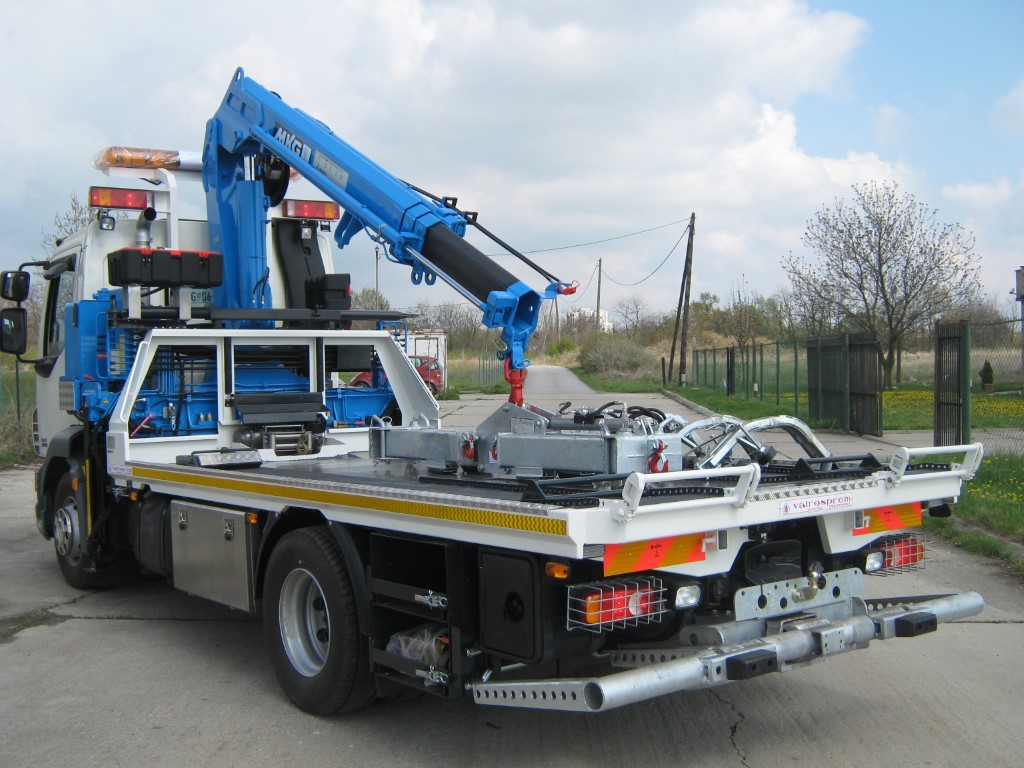

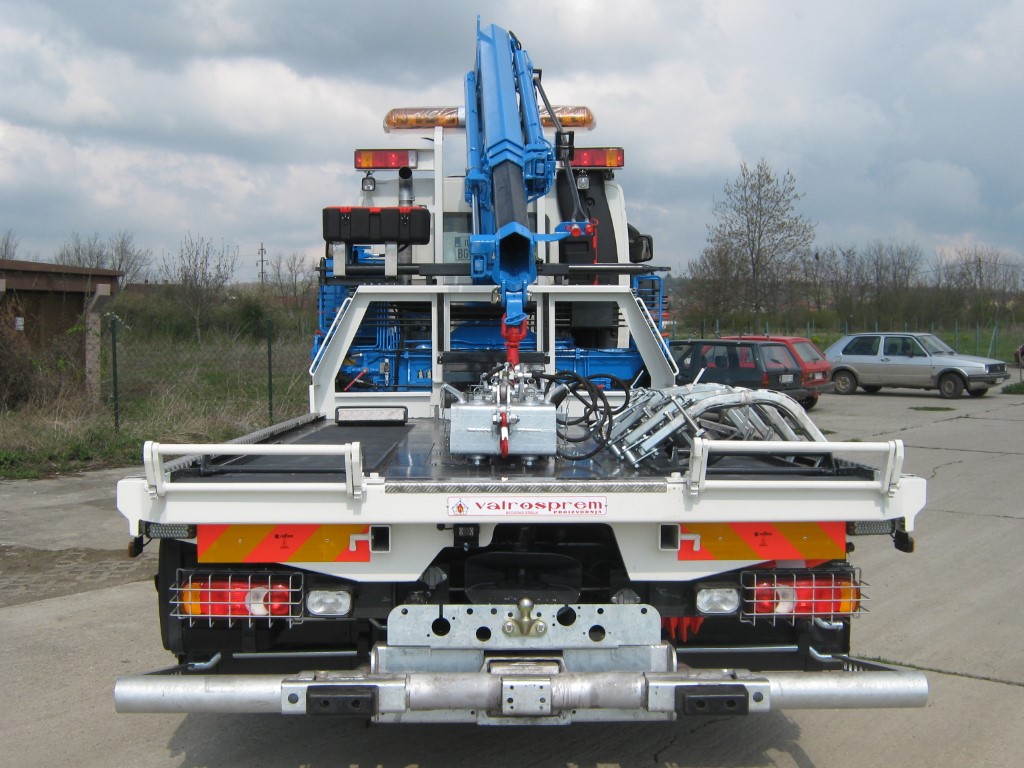

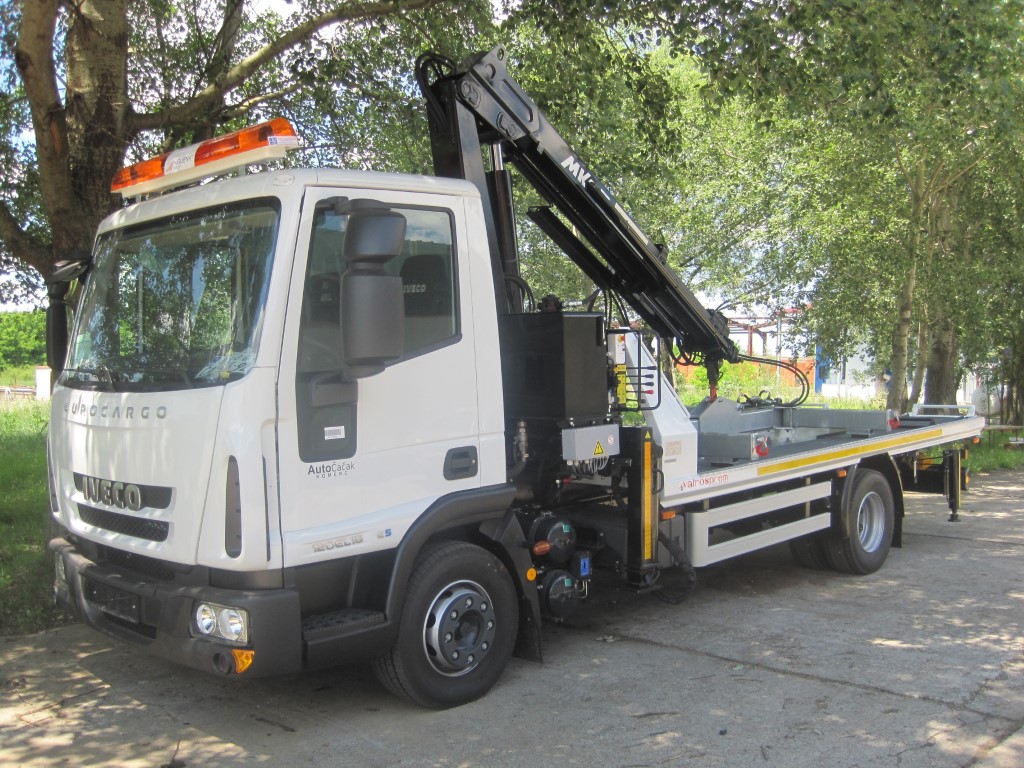

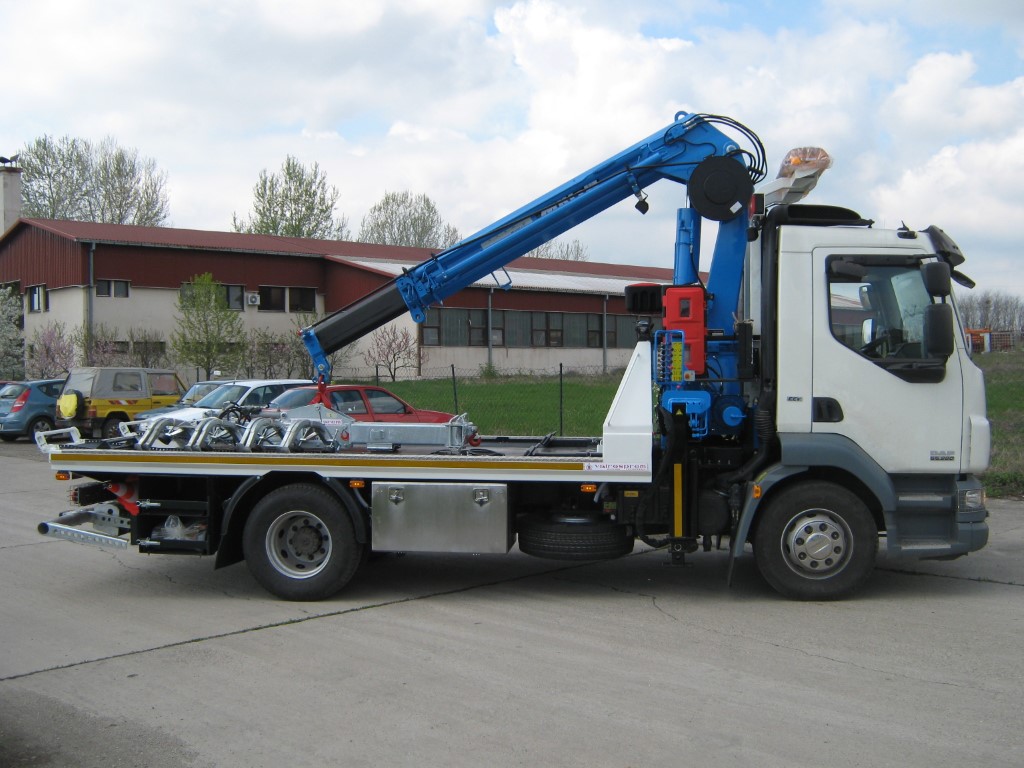

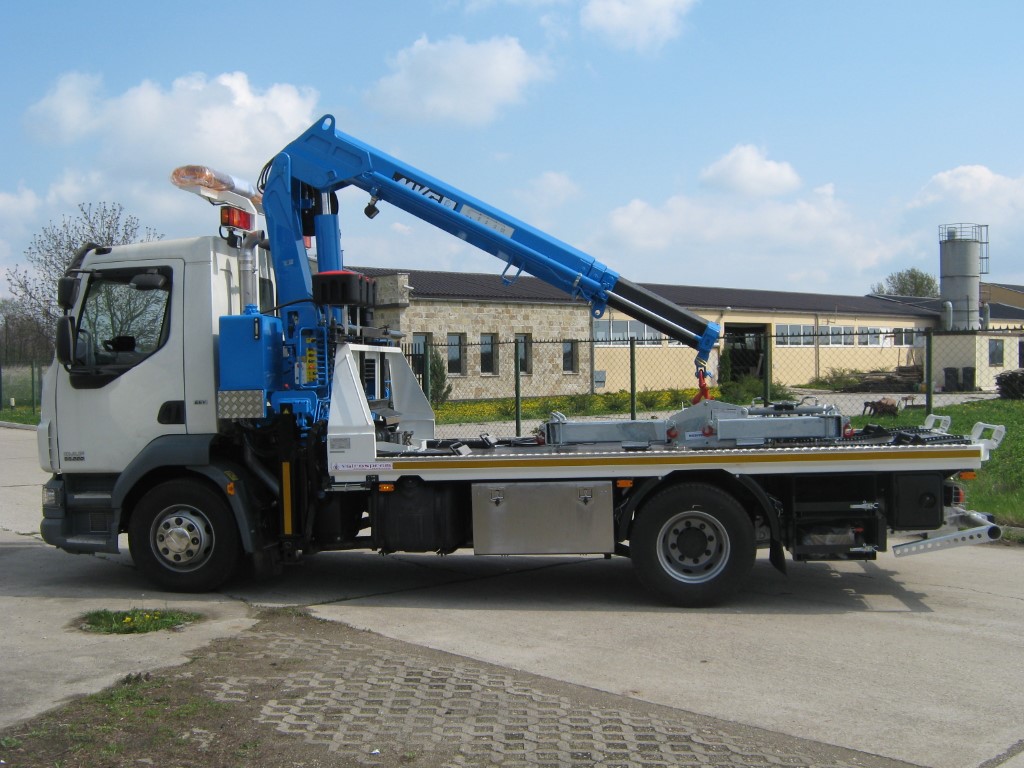

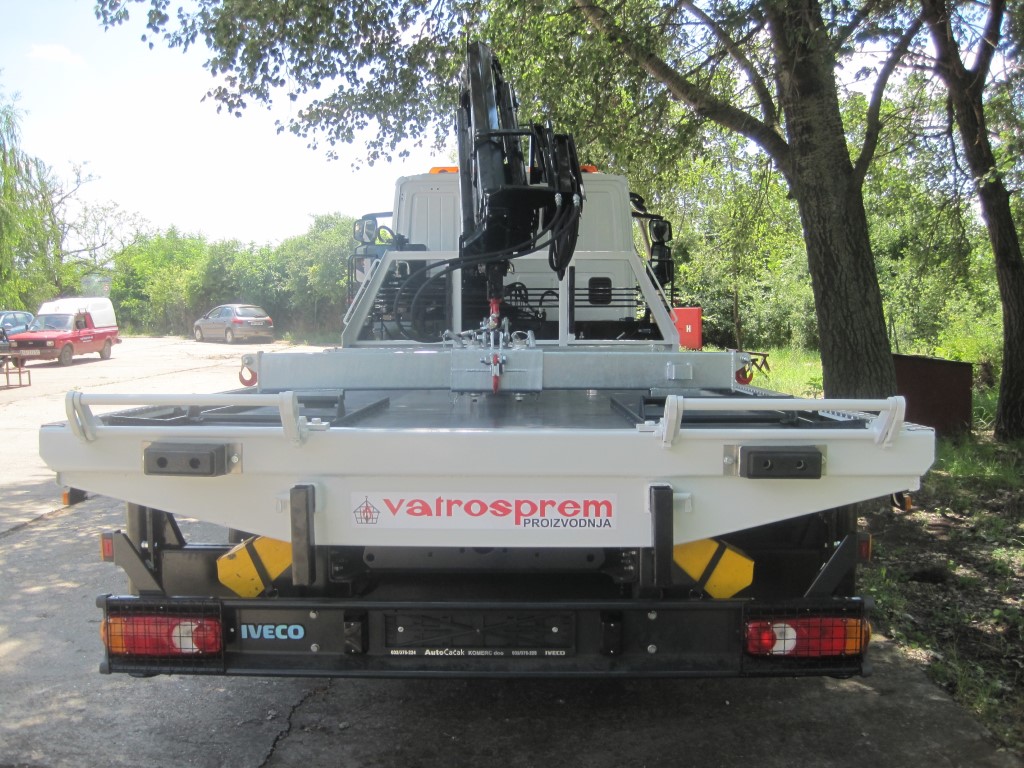

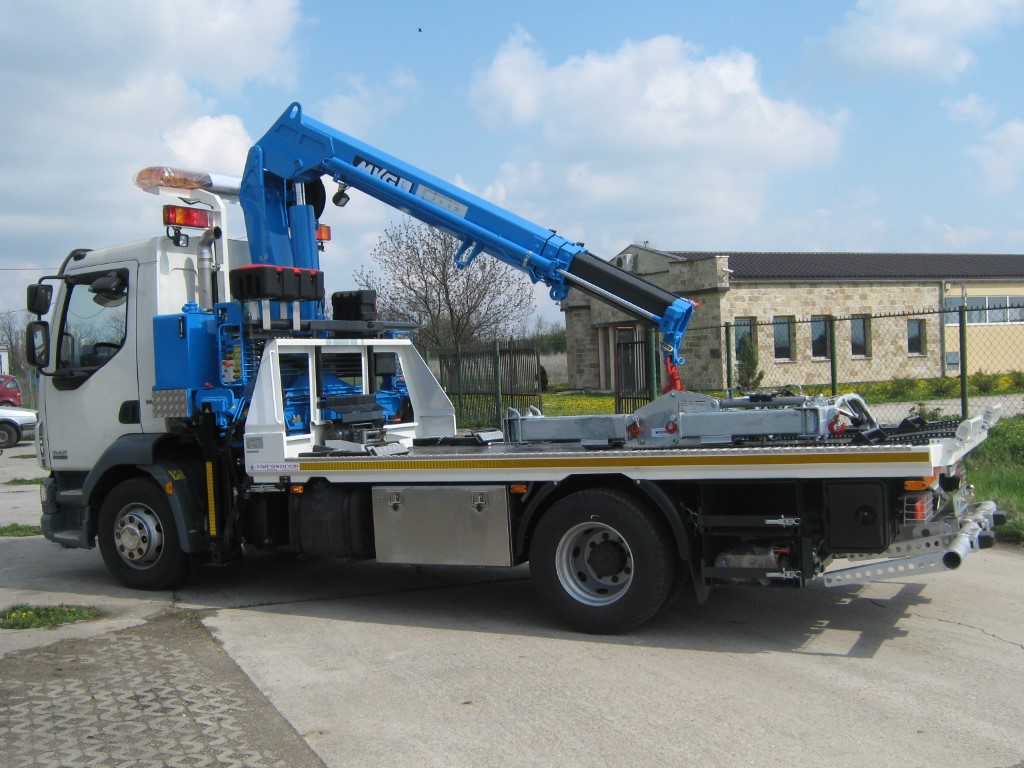

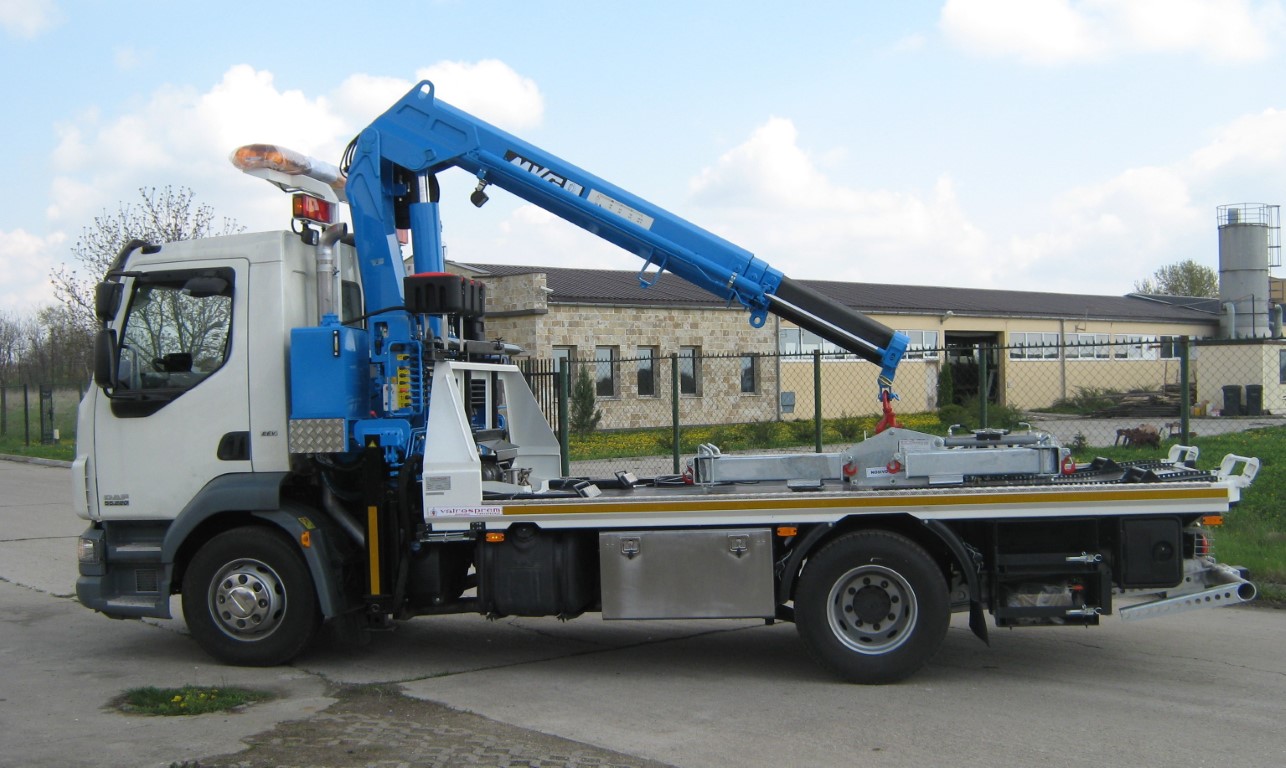

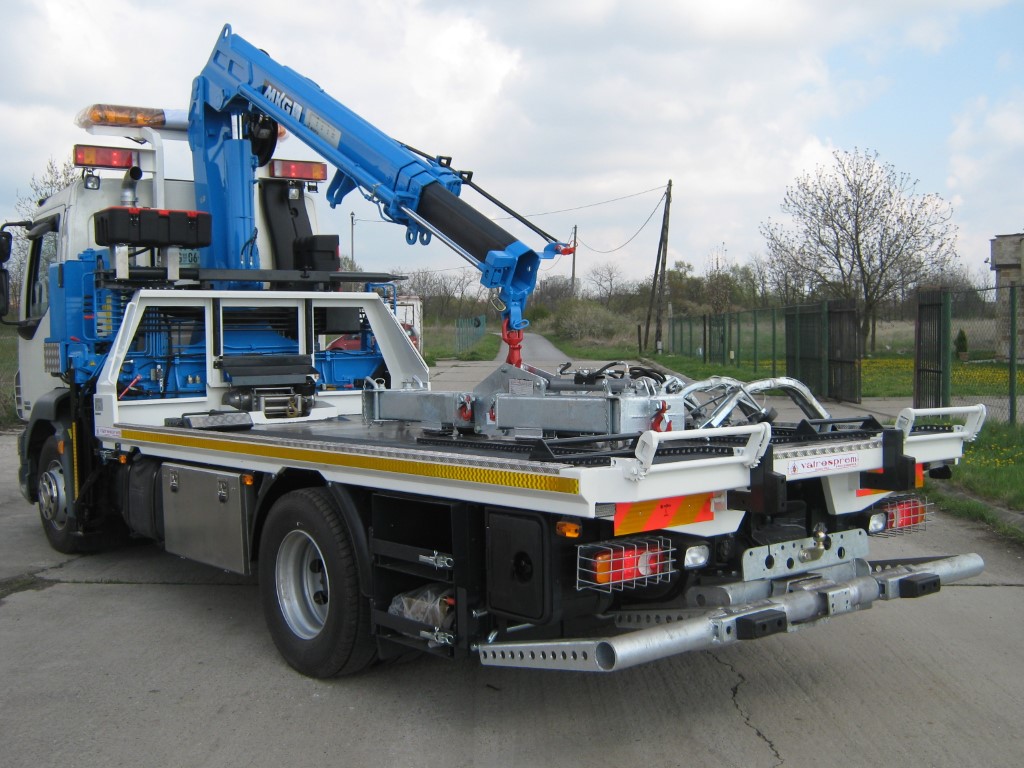

Tow truck "Spider"

Tow truck or "Spider" is used for loading, transportation and unloading of illegally parked or broken-down cars, SUV and smaller trucks. The lifting system consists of hydraulic crane, towing fork, lifting cross, hydraulic installation and electrical winch.

Technical specifications:
Chassis: MAN, Mercedes, Iveco, Volvo, Scania, DAF, or other
Cabin: 1+2
Crane arm: HYVA, MKG, HIAB, Palfinger or other
Nominal momentum: 12-24 tm
Max reach range: 8.5 m
Stabilizer width: 4000-5500 mm
Height above vehicle chassis: 2250-2400 mm
Crane arm weight: 1200-1500 Kg
Max crane width: 2400-2500 mm
Hydraulic towing fork: Omars 5T
Load-draw position: 2500 kg
Towing fork stroke: 1800-2250 mm
Fork swivel angle: 55º both ways
Lifting cross: with hydraulic regulation of barycenter
Load: 4000-5000 kg
Commands: two sided, with 5 separate segments
Electric winch-check:: WARN XD9000, T-MAX15000 or other
Other equipment: all hydrocylinders with blocking valves, car extraction trolley AGEFA, 2 cabin mounted cameras, top mounted spotlight 24V/70W, tool boxes
